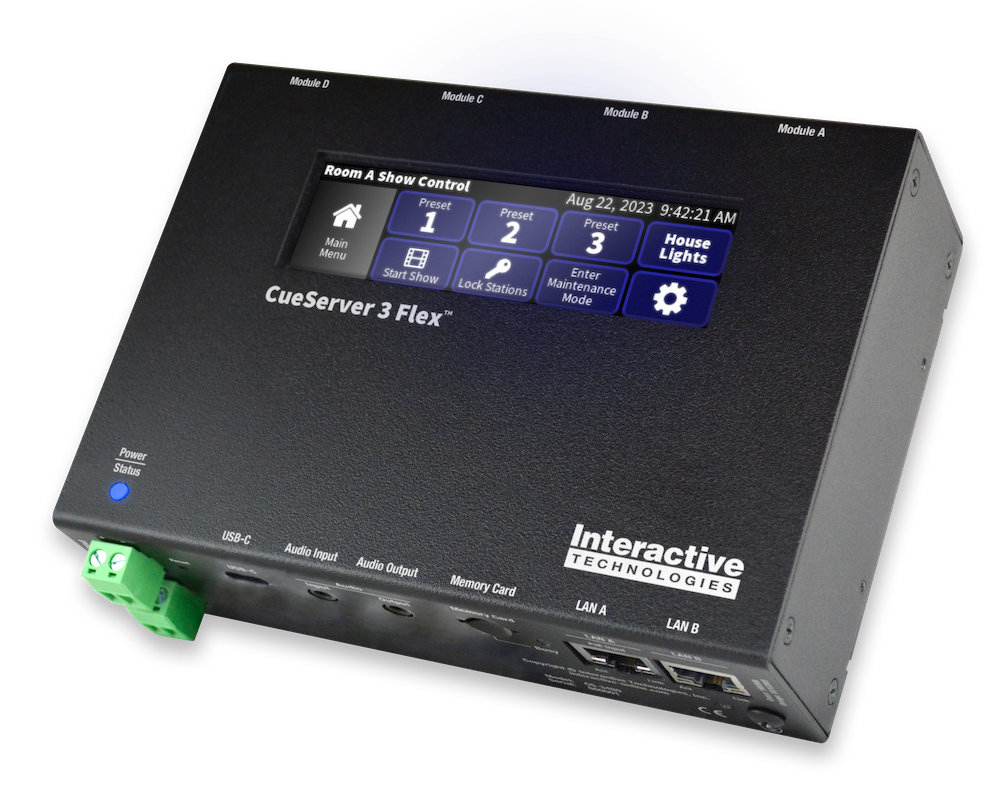

Cueserver 3 Flex
CueServer 3 Flex is the most flexible model in the CueServer 3 family and is housed in a small ruggedized enclosure that can be DIN‐rail, panel, or desktop mounted.
All CueServer 3 Core processors are built around a high-performance quad-core CPU, custom I/O coprocessor, and Gigabit-capable Ethernet to run the most demanding projects up to 16,384 channels, generate beautiful effects, and to host your custom designed layouts to touchscreens and mobile devices with ease.
CueServer 3 Flex offers a top‐panel touchscreen for quick access to function buttons, system status, configuration, and diagnostics.
The back of CueServer 3 Flex contains an array of four smart module slots. Each slot can optionally be fitted with a range of expansion modules such as isolated DMX ports, digital I/O functions, serial ports, relays, and more. Smart modules can be used to configure CueServer to the specific needs of each project.

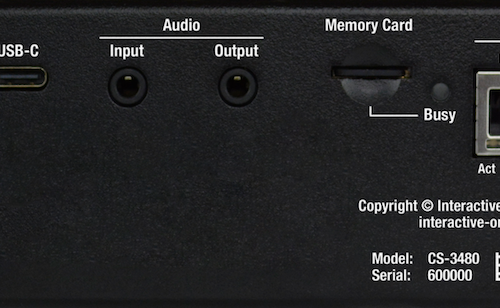

Additionally, CueServer 3 Flex features dual Gigabit Ethernet ports to optionally separate lighting data from control data and stereo audio input/output for playing sound effects or music, or SMPTE timecode input.
For ultimate flexibility, CueServer 3 Flex can be powered by PoE, PoE+, or a DC input voltage. For powering external button stations or other accessory items, an auxiliary DC output is also provided.
Technical Details
| DMX Channels | 1024 - 16,384 |
| DMX Protocols | sACN Artnet Kinet |
| GPIO | 16 Channel |
